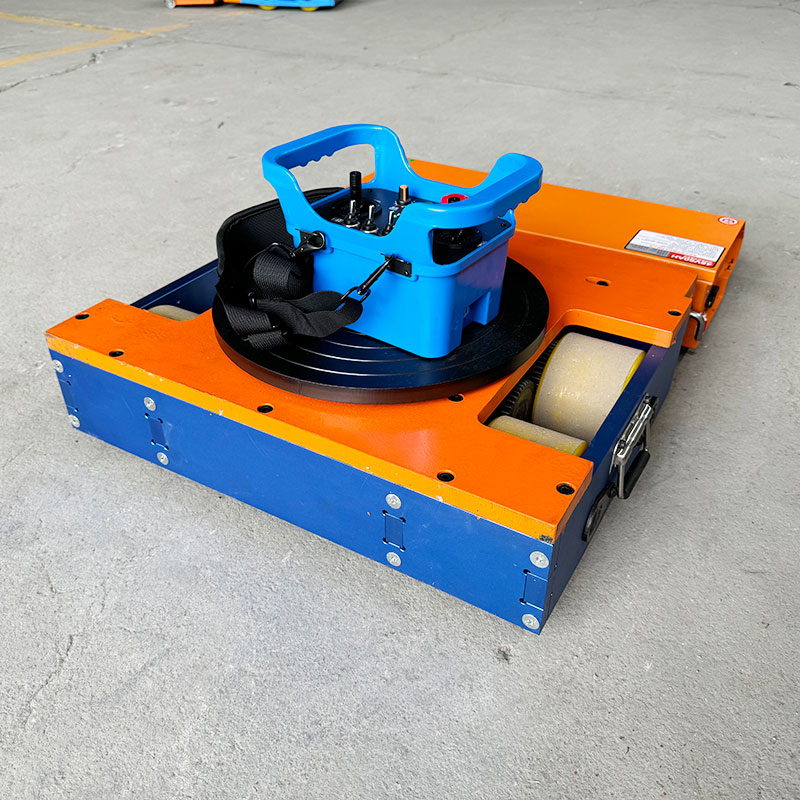

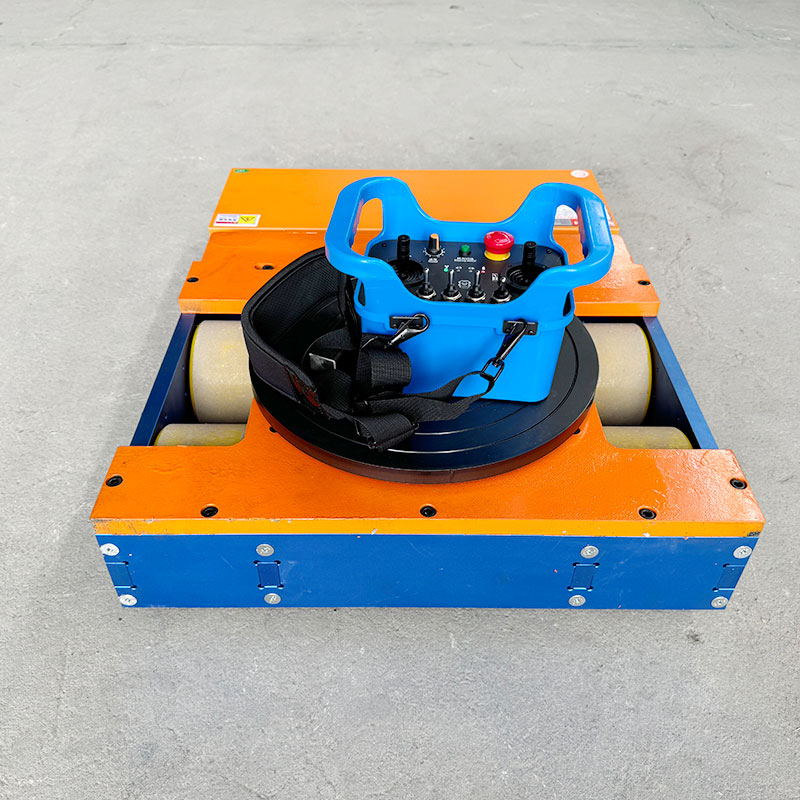

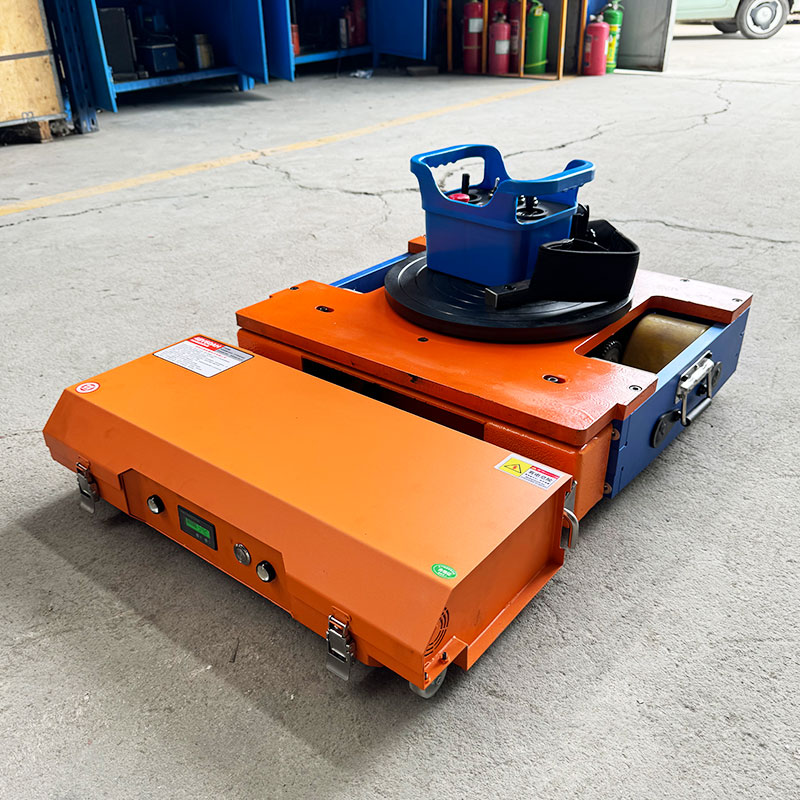

Electric transfer tank
Electric transfer tank

Electric transfer carts include TY25 and TY50 models, with an optimized core power system design that can be customized according to actual working conditions to meet the transfer requirements of heavy-duty equipment across different industries.

Request a Quote

Product Details:

Electric towing tractor includes TY25 and TY50 models, with an optimized core power system design, and can be customized according to actual working conditions to suit the hauling requirements of heavy-duty equipment across different industries.

Towing Tractor Detailed Specifications:


Model

TY - 25

TY - 50

Overall dimensions

Front/rear length 690mm

Left/right length 436mm

Overall height 190mm

Front/rear length 830mm

Left/right length 870mm

Overall height 195mm

Frame material

18mm7-series aviation aluminum

18mm manganese steel plate

Machine weight

100KG

240KG

Towing weight

25T

50T

Load weight

14T

24T

Gear

20CrMnTi carburizing and quenching

20CrMnTi carburizing and quenching

Drive wheel

70D high-strength polyurethane

70D high-strength polyurethane

Motor power

1.0KW

2.0kw

Battery

48V60AH

48V120AH

Remote controller

Industrial remote controller



Motor Detailed Specifications:


Item

Parameter value

Model

110DWM120B + 7GU100L

Rated voltage

48VDC

Rated input power

2000W

Rated current

52A

Rated speed

3000rpm±10%

Rated torque

6.3N·m

No-load current

≤3A

No-load speed

3800rpm±10%

Duty cycle

S1

Insulation resistance

>220MΩ

Service life

>5000h

Electrical strength

660V/S

Insulation class

B

Protection class

IP20

Ambient temperature

-10°C ~ +40°C

Gearbox specification

7GU100LC

Reduction ratio

100:1

Reduction stages

3

Transmission efficiency

73%

Rated torque Machine

420Nm

Noise

<60dB(A) (L = 40CM)

项目参数值型号110DWM120B + 7GU100L额定电压48VDC额定输入功率2000W额定电流52A额定转速3000rpm±10%额定力矩6.3N·m空载电流≤3A空载转速3800rpm±10%工作制S1绝缘电阻>220MΩ寿命>5000h电气强度660V/S绝缘等级B防护等级IP20使用环境温度-10°C ~ +40°C齿轮箱规格7GU100LC减速比100:1减速级数3传动效率73%额定力矩 整机420Nm噪音<60dB(A) (L = 40CM)



Towing Capacity:

Provides TY25 and TY50 electric towing tractors, with an optimized core power system design, and can be customized according to working conditions to suit multi-industry heavy-object hauling requirements.


Intelligent energy-saving operation experience:





821f70ce-1700-4116-9a88-70ef79ef700b


Lithium battery drive and wireless remote control technology

Uses a lithium battery drive system and lithium battery pack to provide stable power.

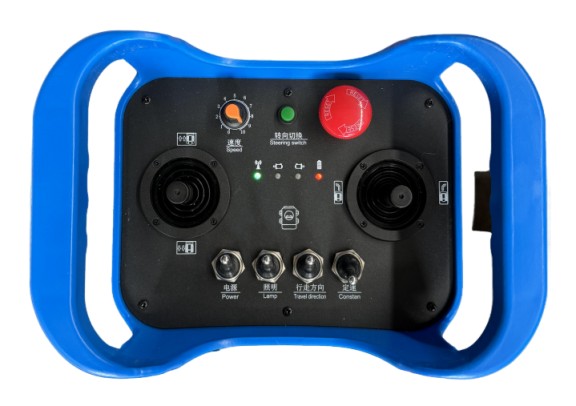

Equipped with a wireless remote control, the operator can safely stand within a range of 10-50 meters (varies by model) to easily control the equipment’s forward movement, reverse movement, turning, stopping, etc., with a long operating distance and stable signal.






Multiple control modes and flexible steering

Offers multiple control modes. In addition to straight-line driving, it also supports 360-degree in-place rotation and micro-speed alignment.


In narrow warehouse aisles or complex workshop environments, it can steer flexibly, avoid obstacles, and transport goods.

821f70ce-1700-4116-9a88-70ef79ef700b



Flexible steering and headlights:


821f70ce-1700-4116-9a88-70ef79ef700b

Forward and reverse directions adjustable Left and right directions adjustable Constant-speed cruising Headlight standard configuration


Applicable terrain:



平坦车间

Flat workshop


硬化地面

Hardened surface


粗糙地面

Rough surface
