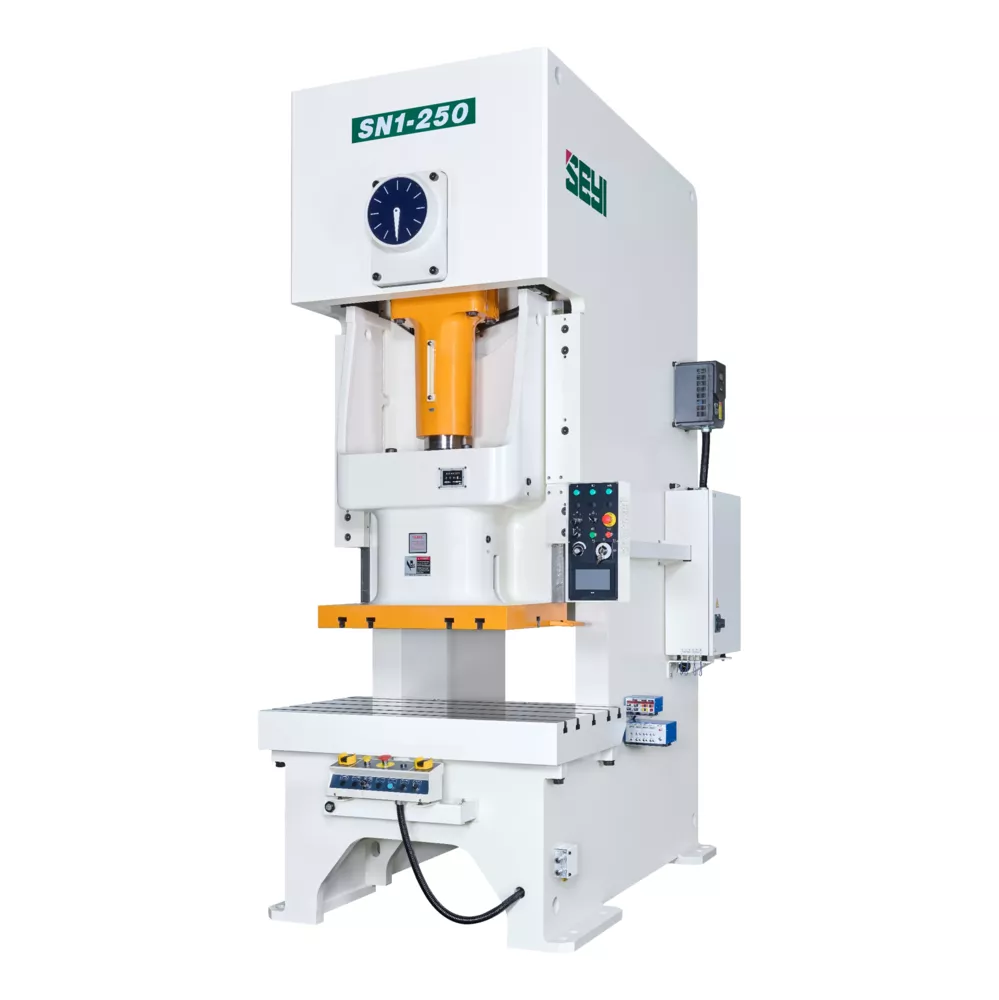

Suitable for blanking, punching, bending, and forming of small parts, single-process thin steel sheets, and continuous die parts; applicable to single-stroke, progressive die, mechanical hand-fed, or transfer system operations.
Wet clutch used; operating noise is within an acceptable range.
The frame has a certain anti-deformation capability, helping reduce body deformation of C-frame presses during operation.
Transmission component accuracy meets conventional stamping process requirements, with low operating vibration, helping maintain the normal service life of the equipment.
The electrical circuit design is compatible with various automation equipment.
The control position is convenient for operator access, and safety protection devices are provided, meeting relevant safety standards for presses.
Equipped with an electric grease lubrication system, it helps maintain proper lubrication of all moving parts of the equipment.
Model | SN1-25 | SN1-35 |
Type | S | H | P | S | H | P |
Capacity | kN | 250 | 350 |
Stroke | mm | 80 | 50 | 35 | 90 | 60 | 40 |
Stroke count | Fixed speed | SPM | 90 | 110 | 140 | 80 | 100 | 130 |
Variable speed | 70-110 | 80-140 | 80-180 | 60-95 | 70-130 | 80-170 |
Force application point | mm | 3.2 | 2.3 | 3.2 | 2.3 |
Closed height | mm | 230 | 200 | 250 | 220 |
Slide adjustment | mm | 50 | 50 |
Ram bottom area(LRxFB) | mm | 330×250 | 380×300 |
Punch holder hole diameter | mm | Φ38.1 | Φ50.8 |
Bolster area(LRxFB) | mm | 700×320 | 780×400 |
Bolster thickness | mm | 85 | 100 |
Table height | mm | 800 | 800 |
Inside width of the frame | mm | 388 | 486 |
Throat depth | mm | 170 | 210 |
Feed axis position | mm | 351×983×383 | 403×1068×405 |
Main motor | Fixed speed | kWxP | 3.7×4 | 3.7×4 |
Variable speed | 3.7×4 | 3.7×4 |
Ram adjustment motor | kWxP | — | — |
Footprint dimensions | mm | 720×1058 | 830×1125 |
Foundation screw positions | mm | 620×878 | 730×925 |
Floor space | mm | 875×1360 | 985×1425 |
Total machine height (excluding vibration isolators) | mm | 2060 | 2185 |
Air pressure | MPa | 0.5 | 0.5 |
Die cushion | Capacity | kN | 22 | — | — | 22 | — | — |
Stroke | mm | 50 | — | — | 50 | — | — |
Area(LRxFB) | mm | 295×210 | — | — | 295×210 | — | — |
Model | SN1-45 | SN1-60 |
Type | S | H | P | S | H | P |
Capacity | kN | 450 | 600 |
Stroke | mm | 110 | 70 | 45 | 130 | 80 | 50 |
Stroke count | Fixed speed | SPM | 70 | 90 | 120 | 60 | 80 | 100 |
Variable speed | 50-85 | 60-120 | 80-160 | 40-75 | 55-110 | 70-150 |
Force application point | mm | 3.2 | 2.3 | 4 | 2.3 |
Closed height | mm | 270 | 240 | 300 | 270 |
Slide adjustment | mm | 60 | 70 |
Ram bottom area(LRxFB) | mm | 430×350 | 480×400 |
Punch holder hole diameter | mm | Φ50.8 | Φ50.8 |
Bolster area(LRxFB) | mm | 840×440 | 900×520 |
Bolster thickness | mm | 115 | 130 |
Table height | mm | 800 | 900 |
Inside width of the frame | mm | 516 | 544 |
Throat depth | mm | 230 | 270 |
Feed axis position | mm | 428×1158×437 | 450×1285×478 |
Main motor | Fixed speed | kWxP | 3.7×4 | 5.5×4 |
Variable speed | 3.7×4 | 5.5×4 |
Ram adjustment motor | kWxP | — | 0.4x4 |
Footprint dimensions | mm | 890×1210 | 940×1315 |
Foundation screw positions | mm | 790×1010 | 840×1115 |
Floor space | mm | 1035×1510 | 1085×1620 |
Total machine height (excluding vibration isolators) | mm | 2290 | 2540 |
Air pressure | MPa | 0.5 | 0.5 |
Die cushion | Capacity | kN | 35 | — | — | 35 | — | — |
Stroke | mm | 70 | — | — | 70 | — | — |
Area(LRxFB) | mm | 340×234 | — | — | 340×234 | — | — |
Model | SN1-80 | SN1-110 |
Type | S | H | P | S | H | P |
Capacity | kN | 800 | 1100 |
Stroke | mm | 150 | 100 | 60 | 180 | 110 | 70 |
Stroke count | Fixed speed | SPM | 60 | 80 | 100 | 50 | 70 | 90 |
Variable speed | 40-75 | 50-100 | 65-140 | 35-65 | 45-90 | 60-125 |
Force application point | mm | 5 | 3.2 | 5 | 3.2 |
Closed height | mm | 330 | 300 | 350 | 320 |
Slide adjustment | mm | 80 | 90 |
Ram bottom area(LRxFB) | mm | 560×460 | 650×520 |
Punch holder hole diameter | mm | Φ50.8 | Φ50.8 |
Bolster area(LRxFB) | mm | 1050×600 | 1150×680 |
Bolster thickness | mm | 140 | 155 |
Table height | mm | 900 | 900 |
Inside width of the frame | mm | 614 | 670 |
Throat depth | mm | 310 | 350 |
Feed axis position | mm | 507×1445×512 | 596×1630×614 |
Main motor | Fixed speed | kWxP | 5.5×4 | 7.5×4 |
Variable speed | 7.5×4 | 7.5x4 | 11x4 |
Ram adjustment motor | kWxP | 0.4x4 | 0.4×4 |
Footprint dimensions | mm | 1050×1480 | 1160×1680 |
Foundation screw positions | mm | 950×1230 | 1060×1380 |
Floor space | mm | 1195×1785 | 1310×1985 |
Total machine height (excluding vibration isolators) | mm | 2755 | 2990 |
Air pressure | MPa | 0.5 | 0.5 |
Die cushion | Capacity | kN | 60 | — | — | 80 | — | — |
Stroke | mm | 80 | — | — | 90 | — | — |
Area(LRxFB) | mm | 410×260 | — | — | 480×300 | — | — |
Model | SN1-160 | SN1-200 |
Type | S | H | P | S | H | P |
Capacity | kN | 1600 | 2000 |
Stroke | mm | 200 | 130 | 80 | 220 | 150 | 90 |
Stroke count | Fixed speed | SPM | 40 | 60 | 80 | 35 | 50 | 65 |
Variable speed | 30-50 | 35-70 | 50-100 | 25-45 | 30-60 | 40-85 |
Force application point | mm | 6 | 4 | 6 | 4 |
Closed height | mm | 400 | 360 | 450 | 400 |
Slide adjustment | mm | 100 | 110 |
Ram bottom area(LRxFB) | mm | 720×580 | 860×650 |
Punch holder hole diameter | mm | Φ65 | Φ65 |
Bolster area(LRxFB) | mm | 1250×760 | 1400×840 |
Bolster thickness | mm | 165 | 180 |
Table height | mm | 900 | 1000 |
Inside width of the frame | mm | 730 | 900 |
Throat depth | mm | 390 | 430 |
Feed axis position | mm | 646×1809×686 | 756×2067×726 |
Main motor | Fixed speed | kWxP | 11×4 | 15×4 |
Variable speed | 11×4 | 15×4 | 15×4 |
Ram adjustment motor | kWxP | 0.7×4 | 0.7×4 |
Footprint dimensions | mm | 1300×1985 | 1480×2113 |
Foundation screw positions | mm | 1180×1655 | 1360×1753 |
Floor space | mm | 1510×2290 | 1690×2415 |
Total machine height (excluding vibration isolators) | mm | 3270 | 3725 |
Air pressure | MPa | 0.5 | 0.5 |
Die cushion | Capacity | kN | 100 | — | — | 140 | — | — |
Stroke | mm | 100 | — | — | 110 | — | — |
Area(LRxFB) | mm | 540×340 | — | — | 640×440 | — | — |
Model | SN1-250 | SN1-300 |
Type | S | H | P | S | H | P |
Capacity | kN | 2500 | 3000 |
Stroke | mm | 250 | 180 | 100 | 250 | 180 | 100 |
Stroke count | Fixed speed | SPM | 30 | 45 | 55 | 30 | 45 | 55 |
Variable speed | 22-40 | 30-50 | 30-70 | 20-40 | 25-50 | 30-70 |
Force application point | mm | 6 | 4 | 6 | 4 |
Closed height | mm | 450 | 400 | 500 | 400 |
Slide adjustment | mm | 120 | 120 |
Ram bottom area(LRxFB) | mm | 960×720 | 1000×750 |
Punch holder hole diameter | mm | Φ65 | Φ65 |
Bolster area(LRxFB) | mm | 1500×900 | 1600×900 |
Bolster thickness | mm | 180 | 200 |
Table height | mm | 1000 | 1040 |
Inside width of the frame | mm | 970 | 1010 |
Throat depth | mm | 460 | 460 |
Feed axis position | mm | 796×2262×844 | 846×2468×920 |
Main motor | Fixed speed | kWxP | 18.5×4 | 22×4 |
Variable speed | 18.5×4 | 22×4 |
Ram adjustment motor | kWxP | 0.7×4 | 1.5×4 |
Footprint dimensions | mm | 1560×2400 | 1660×2400 |
Foundation screw positions | mm | 1440×2000 | 1540×2000 |
Floor space | mm | 1770×2705 | 1986×2732 |
Total machine height (excluding vibration isolators) | mm | 4005 | 4406 |
Air pressure | MPa | 0.5 | 0.5 |
Die cushion | Capacity | kN | 140 | — | — | 140 | ― | ― |
Stroke | mm | 120 | — | — | 120 | ― | ― |
Area(LRxFB) | mm | 740×540 | — | — | 740×540 | ― | ― |
Model | SN2-110 | SN2-160 | SN2-200 |
Type | S | H | S | H | S | H |
Capacity | kN | 1100 | 1600 | 2000 |
Stroke | mm | 180 | 110 | 200 | 130 | 230 | 150 |
Stroke count | Fixed speed | SPM | 50 | 70 | 40 | 60 | 35 | 50 |
Variable speed | 35~65 | 45~90 | 30~50 | 35~70 | 25~45 | 30~60 |
Force application point | mm | 5 | 6 | 7 |
Closed height | mm | 400 | 350 | 450 | 400 | 500 | 450 |
Slide adjustment | mm | 90 | 100 | 110 |
Ram bottom area(LRxFB) | mm | 1430×520 | 1560×580 | 1850×650 |
Punch holder hole diameter | mm | Φ51 | Φ51 | Φ51 |
Bolster area(LRxFB) | mm | 1880×680 | 2040×760 | 2420×840 |
Bolster thickness | mm | 150 | 160 | 170 |
Table height | mm | 900 | 950 | 1000 |
Inside width of the frame | mm | 1470 | 1590 | 1930 |
Throat depth | mm | 350 | 390 | 430 |
Feed axis position | mm | 1005×1685×615 | 1005×1600×615 | 1085×1855×660 | 1085×1770×660 | 1260×2107×710 | 1260×2017×710 |
Main motor | kWxP | 7.5×4 | 11×4 | 11×4 | 15×4 | 15×4 |
Ram adjustment motor | kWxP | 0.7x4 | 1.5x4 | 1.5x4 |
Footprint dimensions | mm | 1960×1760 | 1960×1705 | 2170×2030 | 2170×1970 | 2520×2165 | 2520×2115 |
Foundation screw positions | mm | 1860×1410 | 1860×1355 | 2050×1590 | 2050×1530 | 2400×1725 | 2400×1675 |
Floor space | mm | 2190×1810 | 2190×1810 | 2375×2085 | 2375×2085 | 2725×2230 | 2725×2230 |
Total machine height | mm | 3110 | 3025 | 3380 | 3295 | 3760 | 3670 |
Air pressure | MPa | 0.5 | 0.5 | 0.5 |
Die cushion | Capacity | 60x2 | — | 80×2 | — | 100×2 | — |
Stroke | 95 | — | 110 | — | 130 | — |
Area (LR x FB) | 480×340×2 | — | 560×370×2 | — | 700×450×2 | — |
|
|
|
|
|
|
|
|
|
|
Model | SN2-250 | SN2-300 |
Type | S | H | S | H |
Capacity | kN | 2500 | 3000 |
Stroke | mm | 250 | 180 | 280 | 180 |
Stroke count | Fixed speed | SPM | 30 | 45 | 30 | 45 |
Variable speed | 22~40 | 30~50 | 20~35 | 30~50 |
Force application point | mm | 7 | 7 |
Closed height | mm | 550 | 450 | 550 | 450 |
Slide adjustment | mm | 120 | 120 |
Ram bottom area(LRxFB) | mm | 2100×700 | 2100×800 |
Punch holder hole diameter | mm | Φ51x3 | Φ51x3 |
Bolster area(LRxFB) | mm | 2700×920 | 2700×940 |
Bolster thickness | mm | 180 | 200 |
Table height | mm | 1100 | 1100 |
Inside width of the frame | mm | 2190 | 2180 |
Throat depth | mm | 470 | 480 |
Feed axis position | mm | 1405×2305×770 | 1405×2170×770 | 1420×2435×800 | 1420×2285×800 |
Main motor | kWxP | 22×4 | 22×4 |
Ram adjustment motor | kWxP | 1.5x4 | 1.5x4 |
Footprint dimensions | mm | 2810×2470 | 2810×2395 | 2840×2570 | 2840×2470 |
Foundation screw positions | mm | 2690×1970 | 2690×1895 | 2720×2035 | 2720×1935 |
Floor space | mm | 3015×2530 | 3015×2530 | 3045×2600 | 3045×2600 |
Total machine height | mm | 4150 | 4015 | 4380 | 4230 |
Air pressure | MPa | 0.5 | 0.5 |
Die cushion | Capacity | 140×2 | — | 140×2 | — |
Stroke | 140 | — | 140 | — |
Area (LR x FB) | 700×450×2 | — | 700×450×2 | — |
|
|
|
|
|
|
|
|
※ This specification is for reference only
