Generally suitable for small, single-operation jobs such as blanking, punching, bending, and forming of thin steel plate and continuous stamping parts, and can be used for single-stroke, continuous stroke, mechanical hand feeding, or feeding system operations.

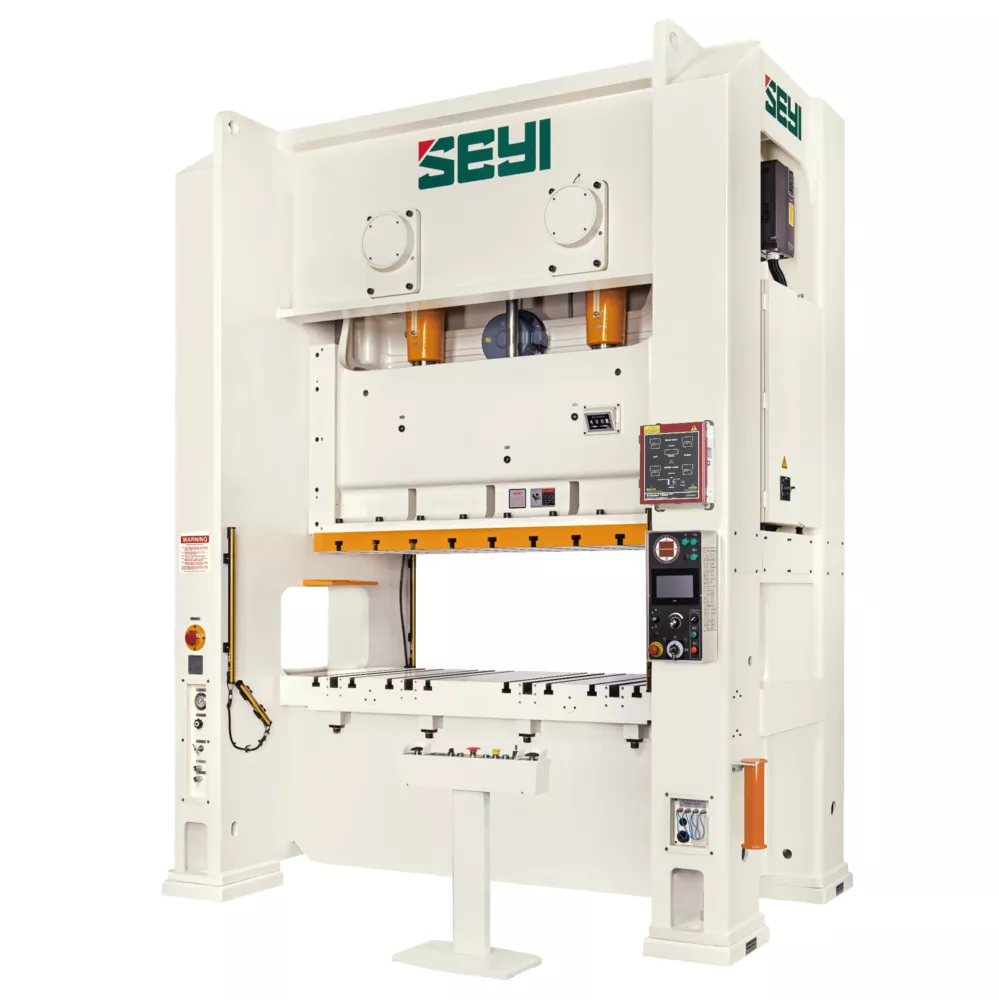

Straight-wall integral frame, fast installation and production, without the drawback of the C-frame press opening deflection.
Suitable for precision die or continuous die processing, with better die life.
Applicable to safety standards in the United States, Europe, and China.
Can be equipped with various peripheral devices to achieve fully automated operation.
Model | SNS1-80 | SNS1-110 | SNS1-160 |
Type | S | H | S | H | S | H |
Capacity | kN | 800 | 1100 | 1600 |
Stroke | mm | 150 | 100 | 180 | 110 | 200 | 130 |
Stroke count | SPM | 40~75 | 55~125 | 35~65 | 50~110 | 30~55 | 40~95 |
Force application point | mm | 5 | 5 | 6 |
Closed height | mm | 330 | 300 | 350 | 320 | 400 | 360 |
Slide adjustment | mm | 80 | 90 | 100 |
Ram bottom area(LRxFB) | mm | 700x460 | 800x520 | 900x580 |
Punch holder hole diameter | mm | Ø50.8 | Ø50.8 | Ø65 |
Bolster area(LRxFB) | mm | 900x680 | 900x460 | 1000x680 | 1000x520 | 1150x760 | 1150x600 |
Bolster thickness | mm | 140 | 155 | 165 |
Working surface height (excluding anti-vibration pads) | mm | 900 | 900 | 940 | 900 |
Main motor (fixed speed + inverter) | kW x P | 7.5x4 | 11x4 | 15x4 |
Ram adjustment motor | kW x P | 0.4x4 | 0.4x4 | 0.7x4 |
Side opening (FBxUD) | mm | 440x280 | 370x250 | 500x300 | 420x270 | 560x350 | 470x310 |
Footprint dimensions | mm | 1430x1470 | 1430x1420 | 1560x1600 | 1560x1550 | 1720x1780 | 1720x1730 |
Floor space | mm | 1630x1740 | 1765x1875 | 1905x2055 |
Total machine height (excluding vibration isolators) | mm | 2765 | 3000 | 3320 | 3280 |
Max. die weight | kg | 300 | 400 | 400 |
Air pressure | MPa | 0.5 | 0.5 | 0.5 |
Die cushion |
Capacity | kN | 60 | - | 60 | - | 80 | - |
Stroke | mm | 95 | - | 95 | - | 110 | - |
Area (LR × FB) | mm | 480x340 | - | 480x340 | - | 560x370 | - |
Model | SNS1-200 | SNS1-250 | SNS1-300 |
Type | S | H | S | H | S | H |
Capacity | kN | 2000 | 2500 | 3000 |
Stroke | mm | 220 | 150 | 250 | 180 | 280 | 180 |
Stroke count | SPM | 25~45 | 35~80 | 22~40 | 30~60 | 20~35 | 25~50 |
Force application point | mm | 6 | 6 | 6 |
Closed height | mm | 450 | 400 | 450 | 400 | 500 | 400 |
Slide adjustment | mm | 110 | 120 | 120 |
Ram bottom area(LRxFB) | mm | 1000x650 | 1100x720 | 1150x800 |
Punch holder hole diameter | mm | Ø65 | Ø65 | Ø65 |
Bolster area(LRxFB) | mm | 1250x840 | 1250x680 | 1350x900 | 1350x750 | 1400x1050 | 1400x850 |
Bolster thickness | mm | 180 | 180 | 200 |
Working surface height (excluding anti-vibration pads) | mm | 1020 | 1000 | 1020 | 1000 | 1040 | 1020 |
Main motor (fixed speed + inverter) | kW x P | 18.5x4 | 22x4 | 30x4 |
Ram adjustment motor | kW x P | 0.7x4 | 0.7x4 | 1.5x4 |
Side opening (FBxUD) | mm | 620x400 | 520x350 | 680x400 | 570x350 | 760x450 | 650x350 |
Footprint dimensions | mm | 1870x1980 | 1870x1930 | 1990x2150 | 1990x2100 | 2070x2297 | 2070x2247 |
Floor space | mm | 2055x2245 | 2175x2500 | 2255x2580 |
Total machine height (excluding vibration isolators) | mm | 3740 | 3720 | 4020 | 4000 | 4200 | 4030 |
Max. die weight | kg | 800 | 1000 | 1250 |
Air pressure | MPa | 0.5 | 0.5 | 0.5 |
Die cushion |
Capacity | kN | 100 | - | 100 | - | 140 | - |
Stroke | mm | 130 | - | 130 | - | 140 | - |
Area (LR × FB) | mm | 700x450 | - | 700x450 | - | 700x450 | - |
Model | SNS2-160 | SNS2-200 | SNS2-250 |
Type | S | H | S | H | S | H |
Capacity | kN | 1600 | 2000 | 2500 |
Stroke | mm | 200 | 130 | 230 | 150 | 250 | 180 |
Stroke count | SPM | 30~55 | 40~85 | 25~45 | 35~70 | 22~40 | 30~60 |
Force application point | mm | 6 | Type 4 | 7 | Type 4 | 7 | 5 |
Closed height | mm | 450 | 400 | 500 | 450 | 550 | 450 |
Slide adjustment | mm | 100 | 100 | 120 |
Ram bottom area(LRxFB) | mm | 1560×650 | 1850×750 | Type 1 | 2200×820 |
Type 2 | 2500×820 |
Punch holder hole diameter | mm | Φ51 | Φ51 | Φ51 |
Bolster area(LRxFB) | mm | 1850×760 | 2200×840 | Type 1 | 2500×920 |
Type 2 | 2800×920 |
Bolster thickness | mm | 160 | 170 | 180 |
Working surface height (excluding anti-vibration pads) | mm | 950 | 1000 | Type 1 | 1100 |
Type 2 | 1150 |
Main motor (fixed speed + inverter) | kW×P | 15x4 | 18.5x4 | 22x4 |
Ram adjustment motor | kW×P | 1.5x4 | 1.5x4 | 1.5x4 |
Side wall opening (FB) | mm | 660 | 740 | 820 |
Side wall opening (UD) | mm | 400 | 320 | 450 | 350 | 460 | 350 |
Footprint dimensions | mm | 2600×1430 | 2930×1650 | Type 1 | 3290×1790 |
Type 2 | 3690×1790 |
Floor space | mm | 2705×2345 | 3045×2490 | Type 1 | 3390×2555 |
Type 2 | 3790×2555 |
Total machine height (excluding vibration isolators) | mm | 3510 | 3450 | 3885 | 3830 | Type 1 | 4180 | Type 3 | 4050 |
Type 2 | 4230 | Type 4 | 4100 |
Max. die weight | kg | 1400 | 2000 | Type 1 | 2200 |
Type 2 | 2500 |
Air pressure | MPa | 0.6 | 0.6 | 0.6 |
Die cushion |
Capacity | kN | 80x2 | - | 100x2 | - | 140x2 | - |
Stroke | mm | 110 | - | 130 | - | 140 | - |
Area (LR × FB) | mm | 560x370x2 | 700x450x2 | 700x450x2 |
Model | SNS2-300 | SNS2-400 | SNS2-500 |
Type | S | H | S | H | S | H |
Capacity | kN | 3000 | 4000 | 5000 |
Stroke | mm | 280 | 180 | 300 | 200 | 300 | 200 |
Stroke count | SPM | 20~40 | 25~50 | 20~40 | 25~50 | 20~40 | 25~50 |
Force application point | mm | 7 | 5 | 7 | 6 | 7 | 6 |
Closed height | mm | 550 | 450 | 600 | 450 | 600 | 450 |
Slide adjustment | mm | 120 | 120 | 120 |
Ram bottom area(LRxFB) | mm | Type 1 | 2200×900 | Type 1 | 2200×1000 | Type 1 | 2200×1100 |
Type 2 | 2500×900 | Type 2 | 2500×1000 | Type 2 | 2500×1100 |
Type 3 | 2800×900 | Type 3 | 2800×1000 | Type 3 | 2800×1100 |
Type 4 | 3100×900 | Type 4 | 3100×1000 | Type 4 | 3100×1100 |
Punch holder hole diameter | mm | Φ51 | Φ51 | Φ51 |
Bolster area(LRxFB) | mm | Type 1 | 2500×1000 | Type 1 | 2500×1100 | Type 1 | 2500×1200 |
Type 2 | 2800×1000 | Type 2 | 2800×1100 | Type 2 | 2800×1200 |
Type 3 | 3100×1000 | Type 3 | 3100×1100 | Type 3 | 3100×1200 |
Type 4 | 3400×1000 | Type 4 | 3400×1100 | Type 4 | 3400×1200 |
Bolster thickness | mm | 200 | 200 | 200 |
Working surface height (excluding anti-vibration pads) | mm | Type 1, Type 2 | 1150 | 1250 | 1250 |
Type 3, Type 4 | 1250 |
Main motor (fixed speed + inverter) | kW×P | 30x4 | 37x4 | 45x4 |
Ram adjustment motor | kW×P | 1.5x4 | 1.5x4 | 1.5x4 |
Side wall opening (FB) | mm | 900 | 1000 | 1100 |
Side wall opening (UD) | mm | 500 | 350 | 550 | 400 | 550 | 400 |
Footprint dimensions | mm | Type 1 | 3390×1870 | Type 1 | 3410×2070 | Type 1 | 3670×2170 |
Type 2 | 3690×1870 | Type 2 | 3710×2070 | Type 2 | 3970×2170 |
Type 3 | 4000×1870 | Type 3 | 4010×2070 | Type 3 | 4050×2170 |
Type 4 | 4300×1870 | Type 4 | 4310×2070 | Type 4 | 4350×2170 |
Floor space | mm | Type 1 | 3490×2665 | Type 1 | 3545×2955 | Type 1 | 3800×3210 |
Type 2 | 3790×2665 | Type 2 | 3845×2955 | Type 2 | 4100×3210 |
Type 3 | 4100×2575 | Type 3 | 4145×2955 | Type 3 | 4180×3210 |
Type 4 | 4400×2575 | Type 4 | 4445×2955 | Type 4 | 4480×3210 |
Total machine height (excluding vibration isolators) | mm | Type 1, Type 2 | 4505 | Type 1, Type 2 | 4355 | Type 1, Type 2 | 4820 | Type 1, Type 2 | 4565 | Type 1, Type 2 | 5020 | Type 1, Type 2 | 4770 |
Type 3, Type 4 | 4620 | Type 3, Type 4 | 4470 | Type 3, Type 4 | 4865 | Type 3, Type 4 | 4715 | Type 3, Type 4 | 5020 | Type 3, Type 4 | 4770 |
Max. die weight | kg | Type 1, Type 2 | 2800 | Type 1, Type 2 | 3000 | Type 1, Type 2 | 3200 |
Type 3, Type 4 | 3000 | Type 3, Type 4 | 3200 | Type 3, Type 4 | 3400 |
Air pressure | MPa | 0.6 | 0.6 | 0.6 |
Die cushion |
Capacity | kN | 140x2 | - | 140x2 | - | 140x2 | - |
Stroke | mm | 140 | - | 140 | - | 140 | - |
Area (LR × FB) | mm | 700x450x2 | 700x450x2 | 700x450x2 |
*This specification is for reference only
